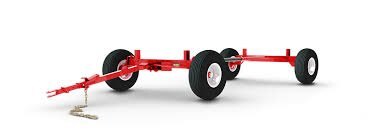

2026 HORST R145B
Contact for Price
Call (613) 342-0668
Item Details
ID: 51810885
Make: HORST
Type: New
Make: HORST
Type: New
Year: 2026
Model: R145B
Model: R145B
Main Properties: Array
Item Description
- Load Capacity: Rated for 16,000 lbs (8 tons) at 30 km/h (20 mph) or 12,000 lbs at 50 km/h (30 mph).
- Dimensions:
- Standard Reach Length: 6' 7".
- Adjustable Wheelbase: Typically ranges from 7' to 11', with an optional 10' reach that extends the wheelbase to 11' to 14'.
- Bunk Height: Approximately 24" when using 11L x 15 tires.
- Chassis & Steering:
- Axles: Front and rear axles both use 5.5x3x0.188 wall tubing.
- Steering: Features automotive-type steering with greasable ball joints for stability and tracking.
-
- Hubs/Spindles: 6-bolt hubs with 1-3/4" diameter spindles made of C1045 hot-rolled steel.
- Weight: Approximately 535 lbs without rims and tires.
Stock Number :E14037
