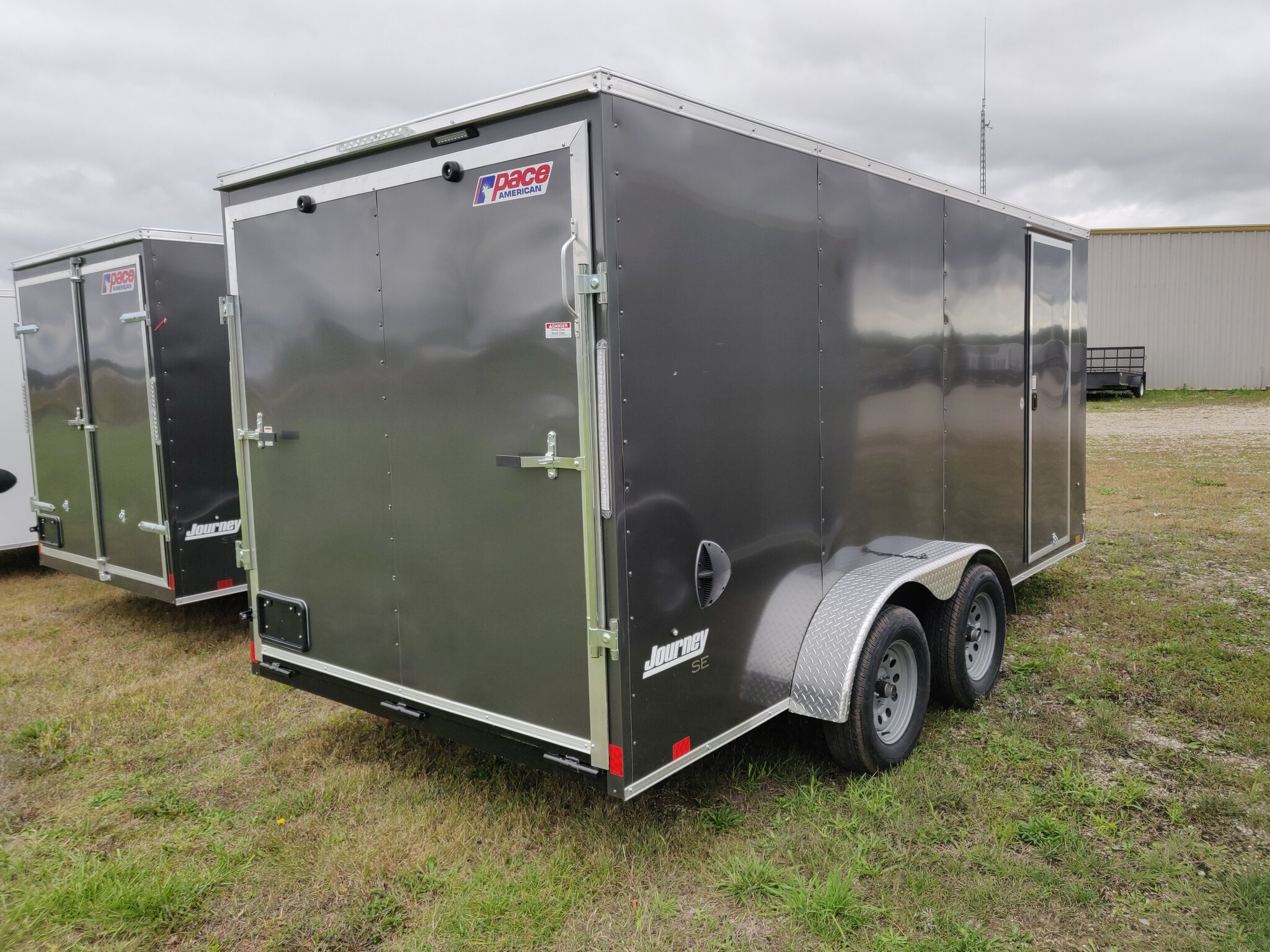

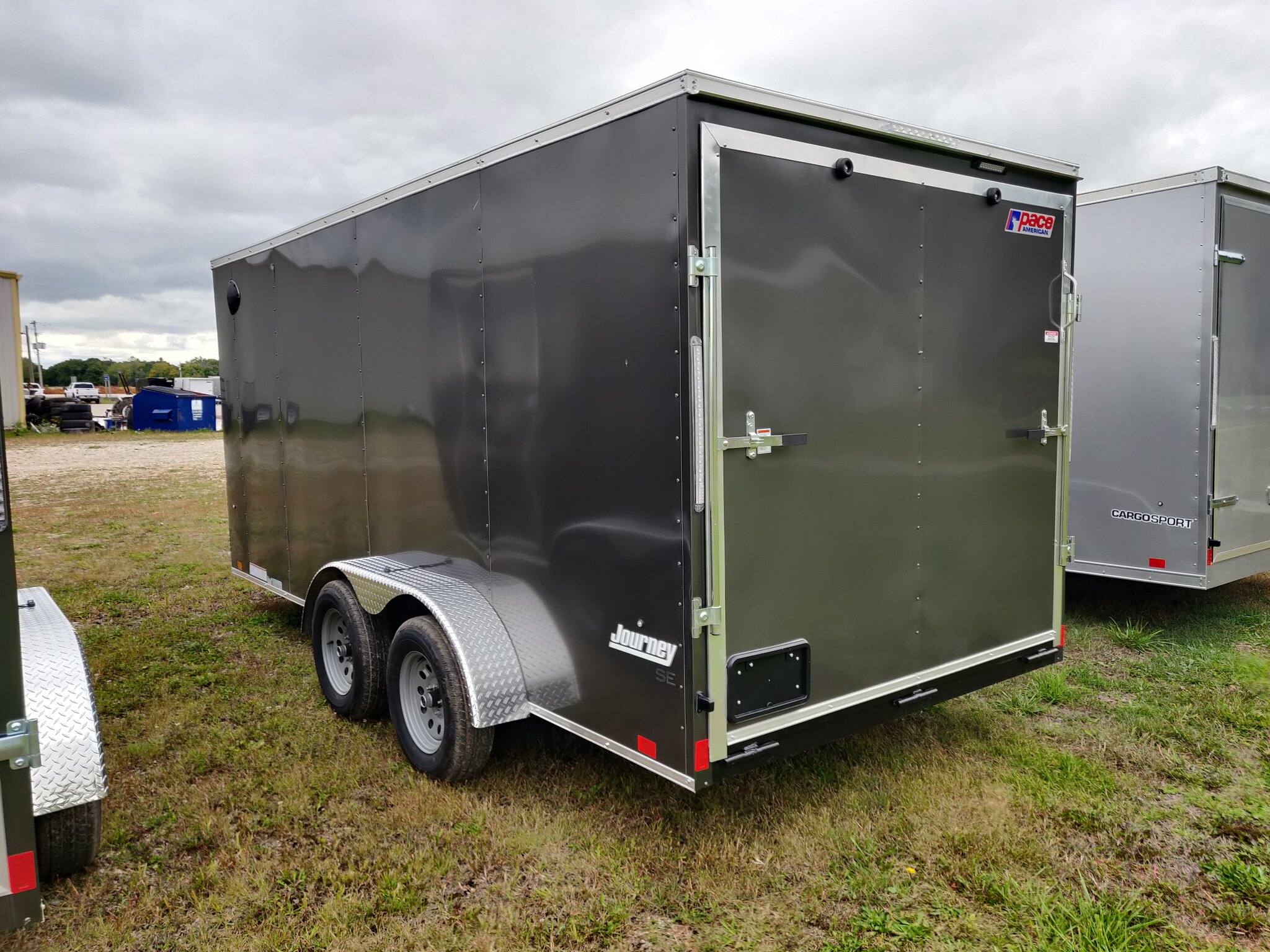

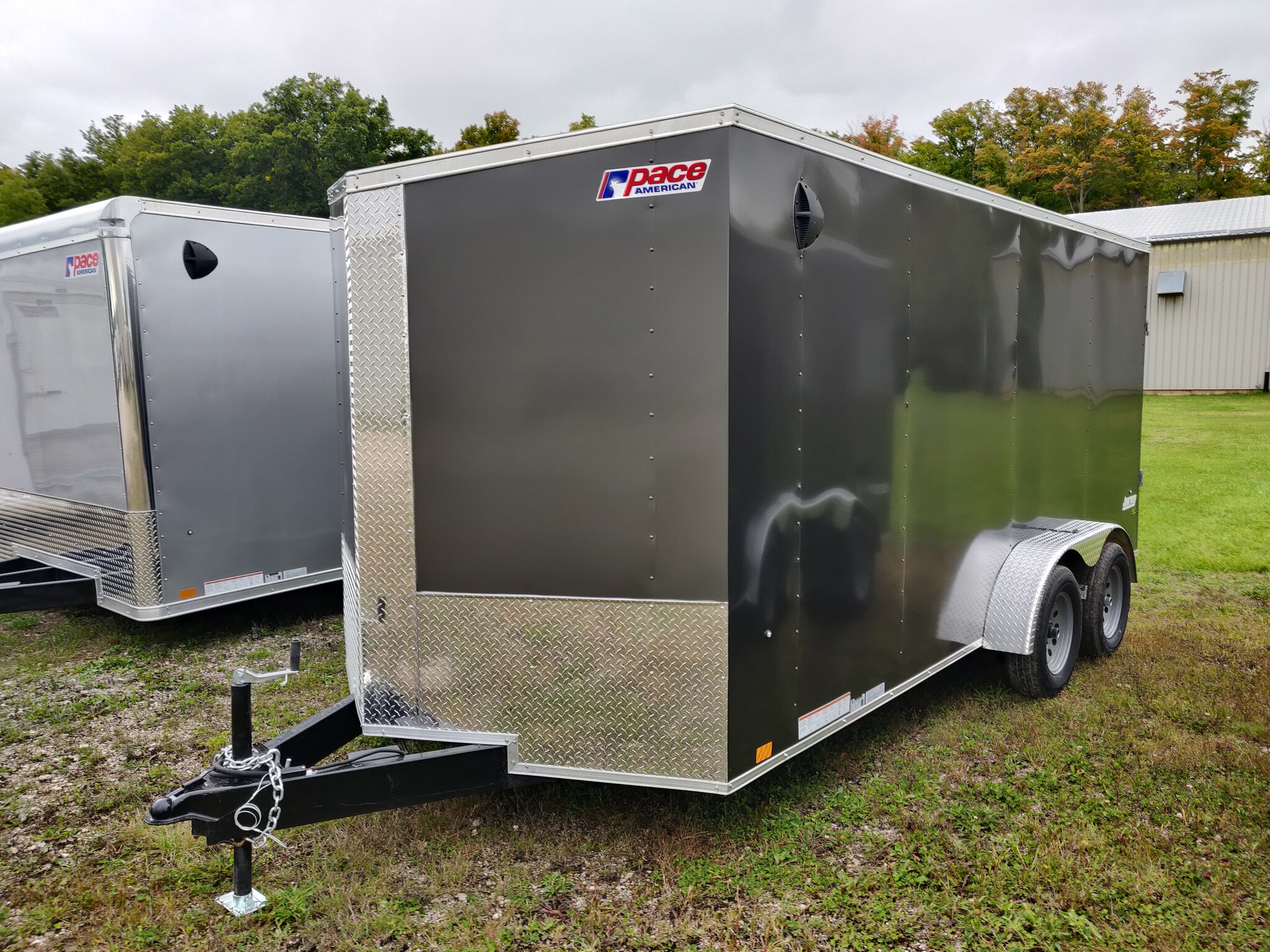

2023 Pace American 7x16 Journey SE Tandem Cargo Trailer (\6\" Height / Ramp)

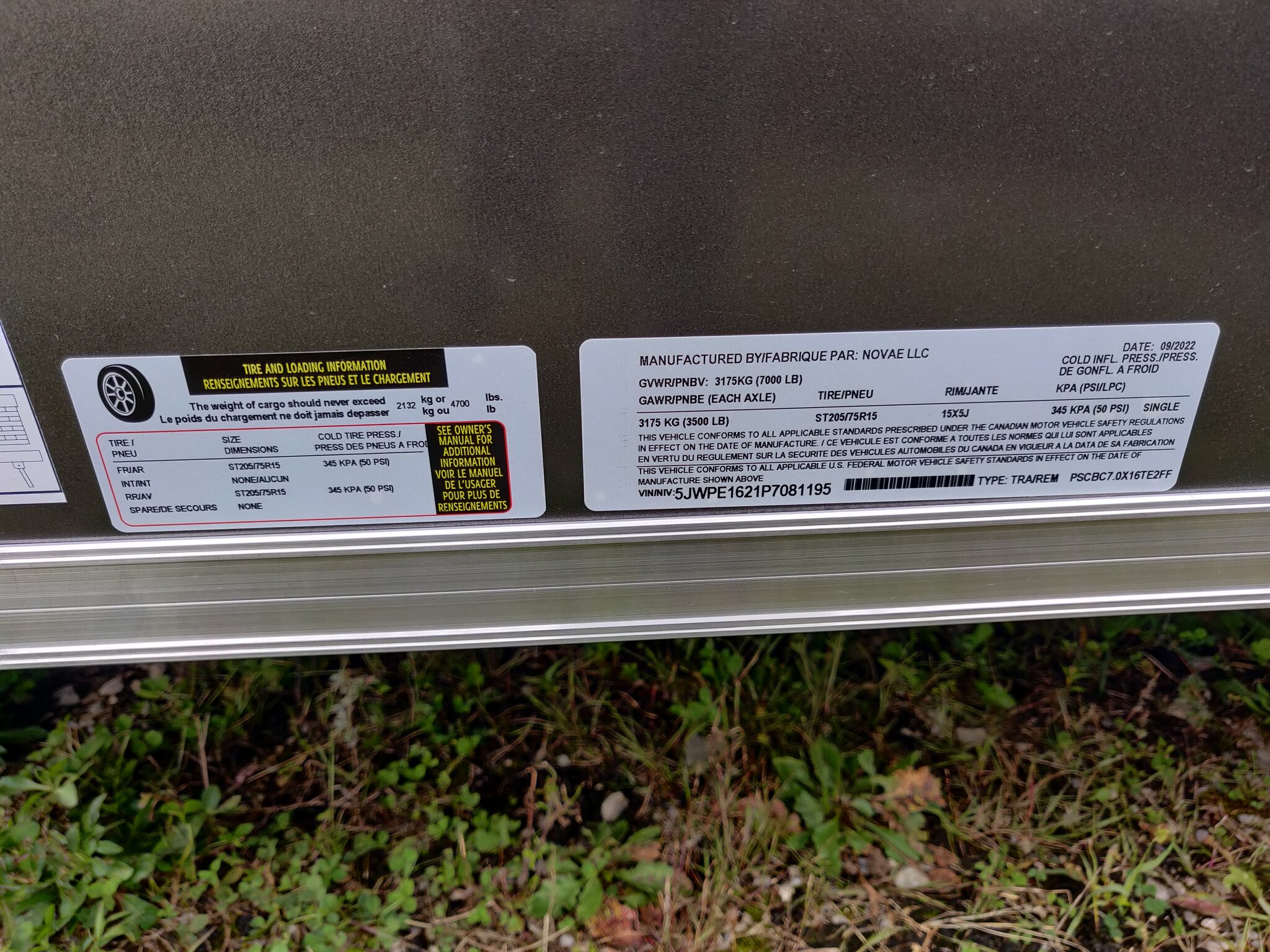

G.V.W.R: 7,000 LB / 3,175 KG
Max Cargo Weight: 4,700 LB / 2,132 KG
Curb Weight: 2,300 LB / 1,043 KG

Style: Journey Cargo SE / Flat Top / 24 in Sloped V-Nose
Axle: Tandem / Drop / Electric
Axle Type: (2) 3500lb Spring w/ Superlube Hubs

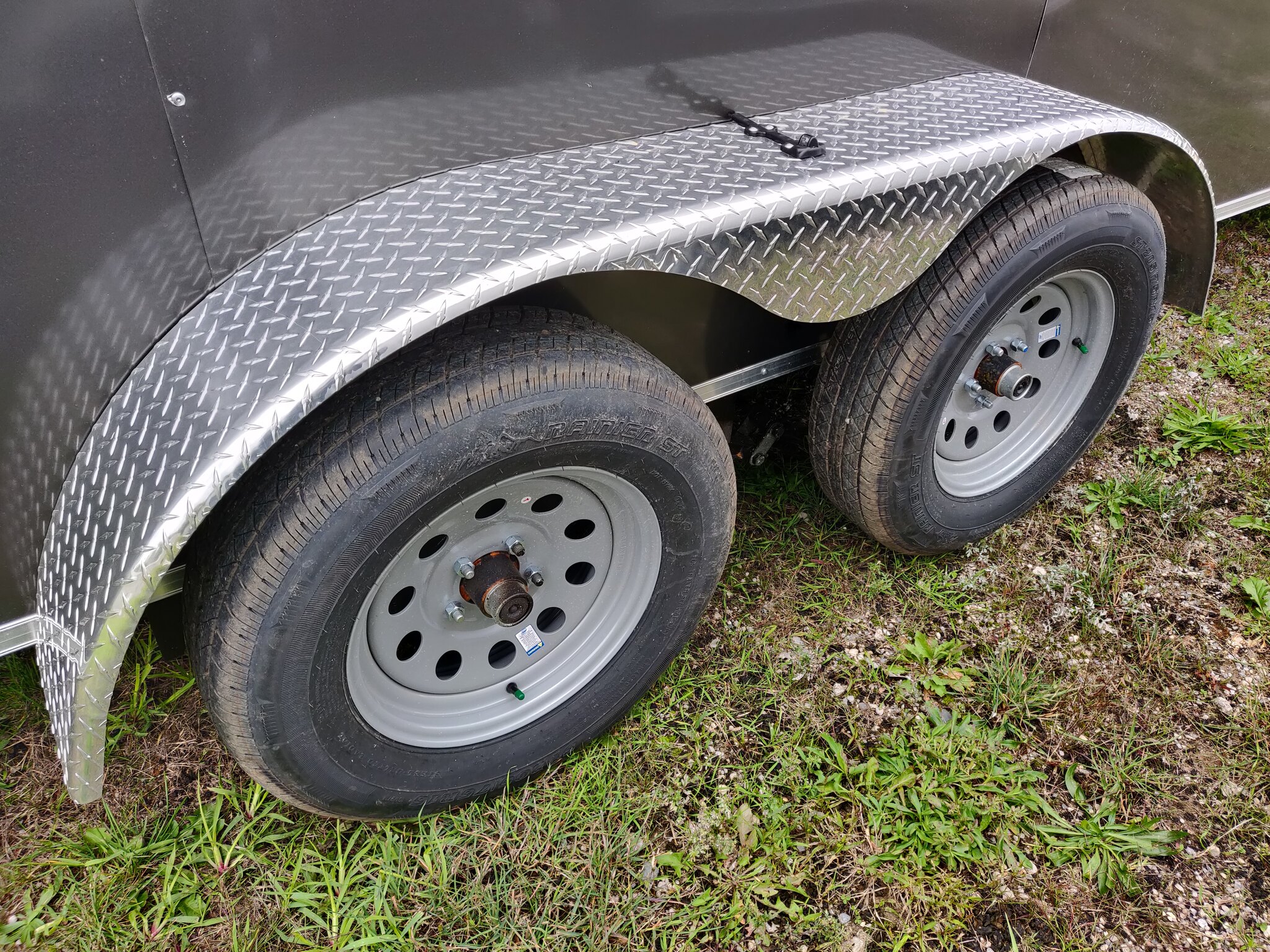

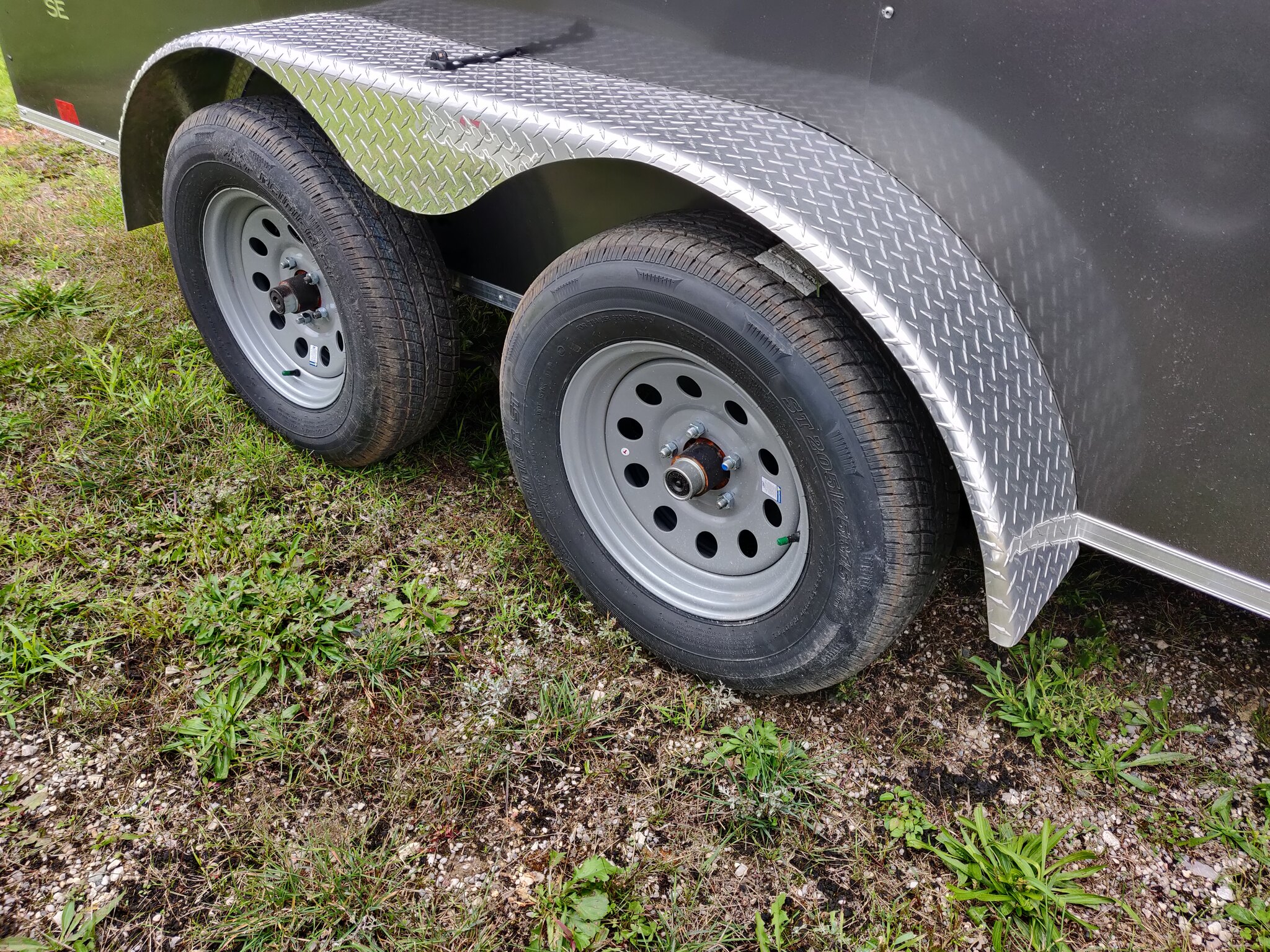

Tire: (4) ST205/75R15 5 Lug Radial
Rim: (4) Silver MOD
Main Frame: 2in x 4in Tube / ZXMs 16in on center w/ 2in x 6in A-Frame tube
Main Frame: Undercoated
Coupler: 2-5/16in
Hitch: 2 Piece w/ 2in x 6in Tube A-Frame
Jack: 2000 LB Top Wind w/ Sand Pad
Jack: Rear 11-1/2 in Fold Down Stabilizer Jacks for Steel Trailers (Pair)
Vertical Post: 78-3/4in V.P.H (\6in Height = 78\" IH)
Sidewall: Z-Post / 16in Centers / 24 in Sloped V-Nose
Roof Bow: 1in x 1-1/4in semi crowned tube / 24in centers

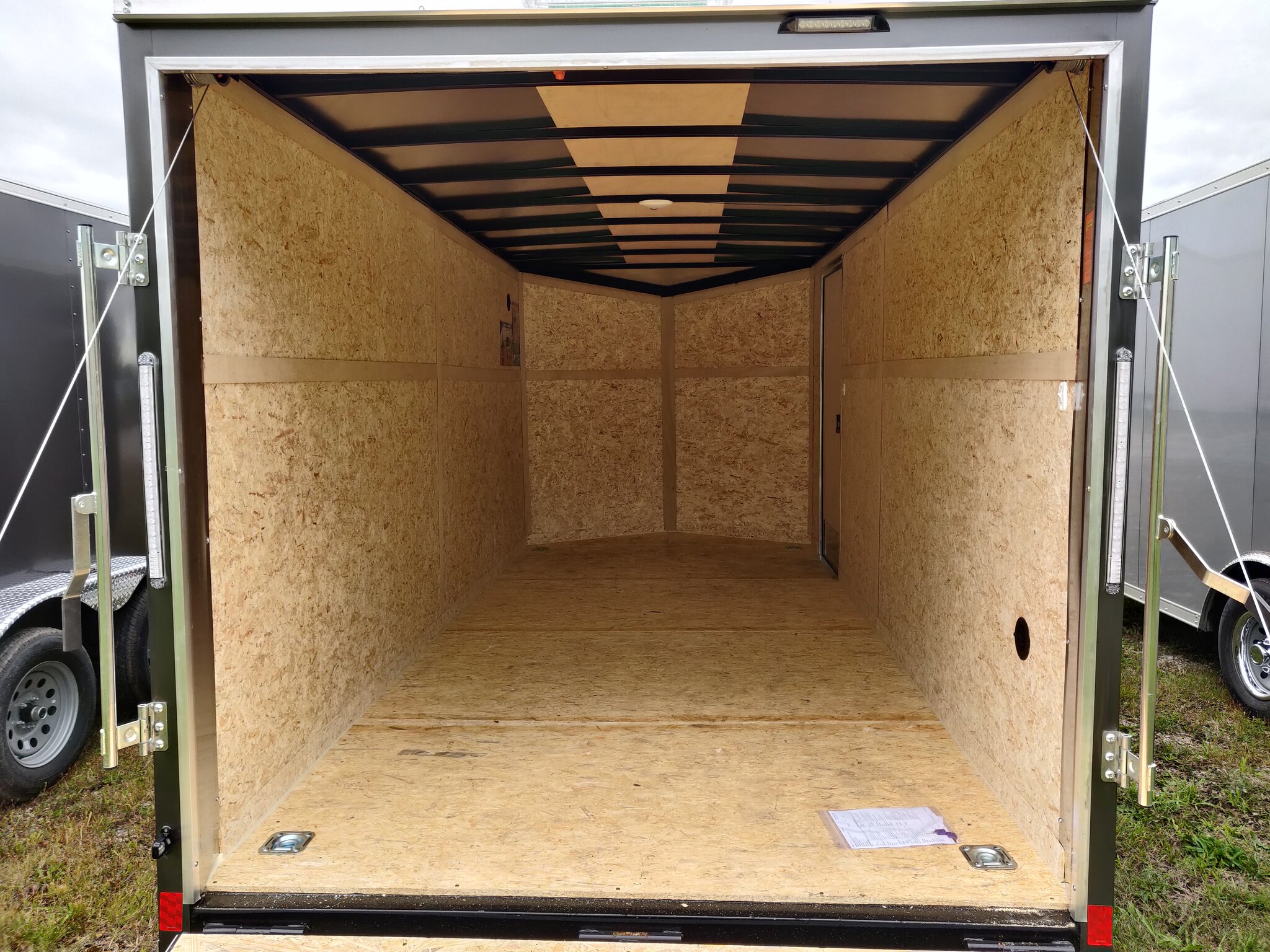

Floor: 3/4in High Performance
Wall: High Performance
Ceiling: None
Exterior Metal: 0.030\" Charcoal
Exterior Metal: Screwless w/ Screwed Seams and Colour Matching Screw - Where Applicable
Front Nose: ATP 0.025 Embossed
Stoneguard: 24in High 0.025 ATP Embossed
Fender: Black ATP Teardrop Tandem
Roof: 1 Piece aluminum
Roof: 24in wide 2.7in Lauan ridge board
Rear Hoop: Same colour as trailer
Top Trim: 2-1/2in
Bottom Trim: 1-1/2in
License Plate Bracket: Molded plastic

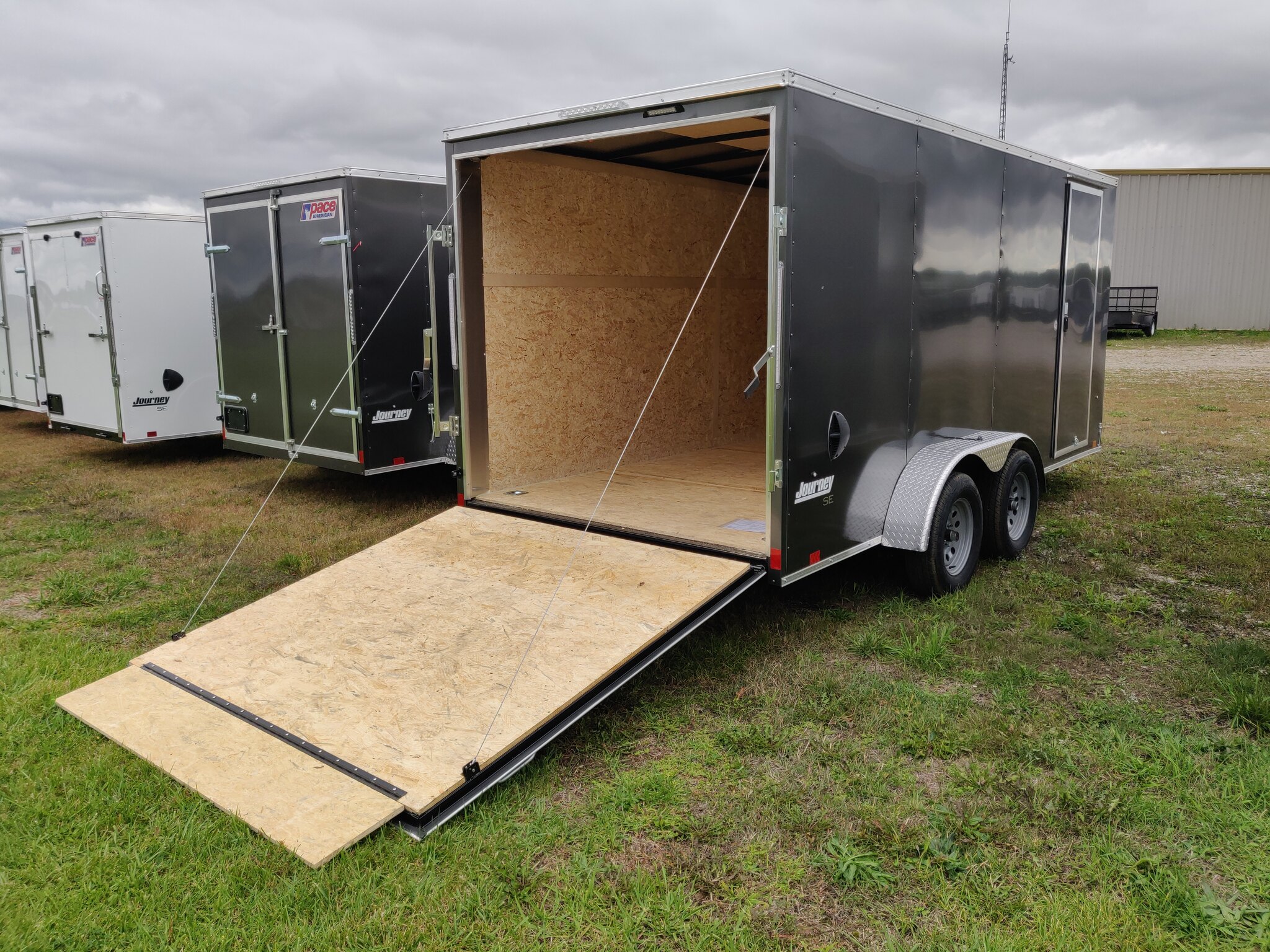

Rear Door: 250 series ramp door w/ spring assist w/ bar locks / hasp and trim / rub rail bottom edge of door trim w/ black drip rail above door
Rear Door: 12 in x 3/4in High Performance Ramp Extension

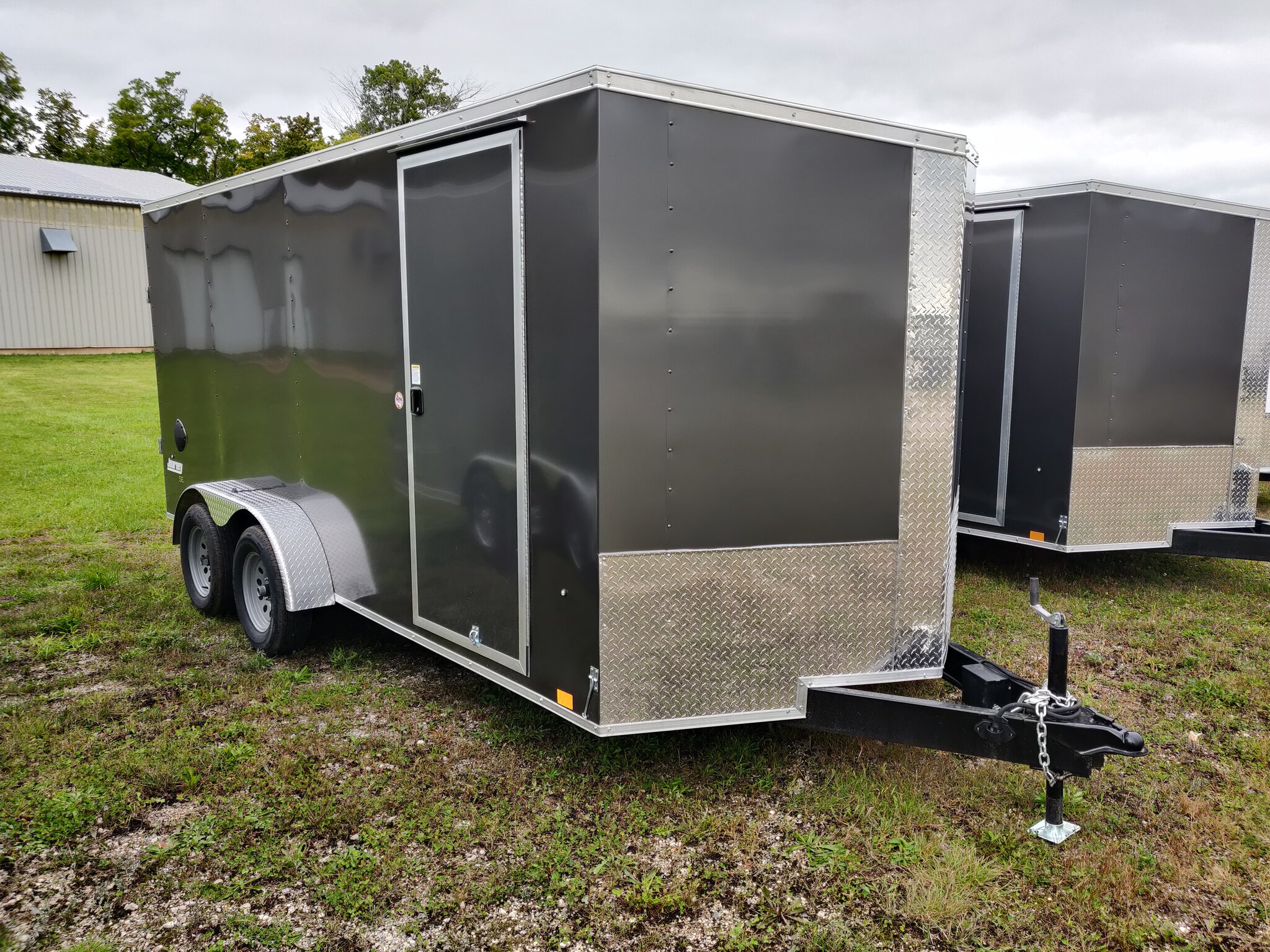

Side Door: 32w x 74h C/S Black F/L w/ wire hold back drip rail above door start 16in from front
Vent: (2) Sidewall flo thru vents (black)
Dome Light: (1) LED Dome light centered
12 Volt Switch: (1) C/S Door
12 Volt Switch: (1) 12V 15A Interior Wall Switch for Exterior Rear Header Loading Light
Breakaway: Breakaway battery w/ switch
Cable: 7 way
Clearance Light: 3/4 Bullet LED Clear Lens
License Plate Light: Yes
Loading Light: (1) 12V 10in Exterior Double Row LED Loading Light - Angled
Tail Light: (2) LED Clear lens slimline w/ integrated backup light
HD D-Ring: (4) Recessed 5,000LB Floor D-Rings Bolted w/ Steel Plates (One in each corner)
