Item Details

ID: 16707804

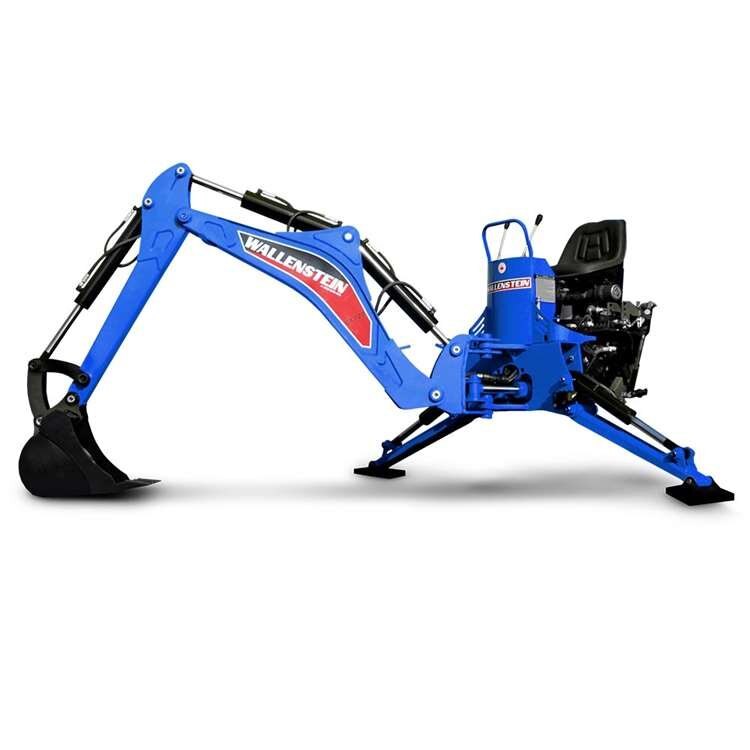

Make: Wallenstein
Type: New

Year: 2019
Model: GX720

Swing Arc: : 180°

Digging Depth:: 7' 8'' (234 cm)

Total Weight : : 765 lbs (347 kg)

Loading Height: : 80'' (203 cm)

Bucket Rotation: : 180°

Ground Clearance: : 10.5

Mounting Options: : Subframe, Skidsteer Universal Plate, PT300 (Cat I), PT322 (Cat II)

Boom Lift Capacity: : 925 lbs (420 kg)

Hp Range (tractor): : 30 - 60

Operating Pressure: : 2250 psi (15513 kPa)

Hp Range (skidsteer): : 45 - 70

Includes Flow Divider: : Yes

Reach From Swing Post : : 123'' (312 cm)

Swing Cylinder Diameter: : 2.5'' (64 mm)

Bucket Cylinder Diameter: : 2.5'' (64 mm)

Dipper Cylinder Diameter : : 2.5'' (64 mm)

Sae* Bucket Digging Force: : 3800 lbs (1724 kg)

Stabilizer Width (spread) : : 89'' (226 cm)

Main Boom Cylinder Diameter : : 3'' (76 mm)

Stabilizer Cylinder Diameter: : 2.5'' (64 mm)

Transport Dimensions (lxwxh): : 80'' x 43'' x 79'' (203 cm x 109 cm x 201 cm)

Sae* Dipper Boom Digging Force: : 2300 lbs (1043)

Minimum Required Hydraulic Flow: : 5 gpm

Overall Operating Height (fully Raised): : 119'' (302 cm)

Features

Hardened Steel Bushings

Curved Boom

Swing cushioning

Dual Cylinder Boom Pivot

Greasable Pins

Stabilizers

Pick your Colour

Replaceable Teeth
