Item Details

ID: 13371250
Make: Argo
Type: New

Year: 2015
Model: 8x8 XTD

Engine: In-line 3 cylinder diesel. 3 year engine warranty.

Model: Kohler/Lombardine KDW1003

Horsepower: 24 (17 kW)

Displacement: 1028cc

Load Capacity On Land: 1340 lb. / 608 kg

Towing Capacity: 2000 lb. / 907 kg

Fuel Capacity: 9.5 US gallons (36 litres) providing 8 - 10 hours of operation

Speed On Land: 17 mph (27 km/h)

Shipping Weight: 1750 lb. / 794 kg

Ground Preassure: Tires 7 psi (48.3 kPa) or less Optional 15

Operating Conditions: All weather, all terrain, -40°F to +104°F (-40°C to +40°C)

Cooling Air: Liquid cooled

Starting: Electric

Transmission: ADMIRAL triple differential steering transmission

Full Skid Plate: Standard

Load Capacity On Water: 840 lb. / 381 kg

Speed On Water: 3 mph (5 km/h)

Tires: ARGO AT189 25x12.00-9 NHS

Item Description

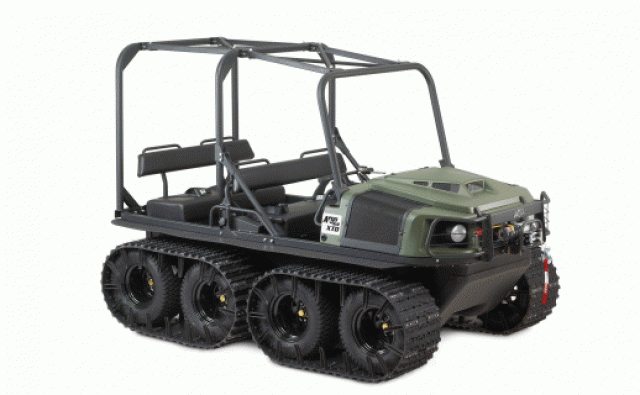

8x8 XTD

This 8-wheel-drive amphibious off-road vehicle is powered by a 1028 cc (62.7 cu. In.) liquid-cooled, 3 cylinder Kohler Lombardini naturally aspirated diesel engine. The engine provides 24 hp (17.6 kW) and 36.9 lbs ft of torque to the ADMIRAL two-speed transmission. It has a load capacity of up to 1,340 lb. / 608 kg on land or 840 lb. / 381 kg on water. Can transport up to 4 passengers on land and 2 on water and features a towing capacity of 2,000 lb. / 907 kg.

The 8x8 XTD is the ultimate all-terrain machine for those who require a durable, robust and dependable job site transporter. Designed for demanding commercial uses, the XTD has what people need to get their job done; large payload capacity, tubular steel frame, sealed axles and comfort for staff. The low operational weight, coupled with the efficient ADMIRAL steering transmission, makes this the ideal vehicle to transport people and equipment through the harshest terrain. With integrated frame mounting locations and universal mounting accessory, adding tools or equipment to the rear of the vehicle is convenient, simple and quick. Adding rubber tracks makes this the best-in-class vehicle when the task takes you off the beaten path.

Colors

Features

Innovative triple-differential ADMIRAL transmission with independent steering brakes
Increased steering efficiency for more and constant power to the wheels
Common rail fuel injection provides:
Better fuel economy
1. Reliable cold weather starting
2. Large rear cargo capacity
Modular accessory designs for quick and easy change-over
Large engine compartment with quick detach body panels
Long wheel base for increased ride comfort over rough terrain
Wide, 65”, wheel base for superior stability
Oil-bath drive axles supported by taper roller bearings
Full skid plate for lower body protection
8-wheel traction with low center of gravity for extra stability
25" (63.5 cm) ARGO tires with proprietary tread design
Analogue Gauge (speedometer with digital odometer, tachometer with digital hour meter, fuel level, voltmeter, engine coolant temperature, warning lights; low oil pressure, parking brake on and glow plug on)
Multi-position handlebars, Left, Right or Center
Dual 12V outlets and Glove Boxes
Self-adjusting hydraulic brakes with vented discs
Low emissions
3-year limited engine warranty
