Kverneland Exacta TL Contact for Price Back to Search Results  register
  send to a friend        Ship this Item         Apply For Financing         print this Ad         Can't find it?
No image available for this ad listing image listing image listing image listing image listing image listing image listing image listing image listing image listing image listing image


Documents:





INFORMATION DETAILS

ID:  13665623

Year:  2017

Make: Kverneland

Model: Exacta TL

Type: New

MSRP:  N/A Engine Size - cc: N/A



SELLER DESCRIPTION

High Tech Weighing with High Capacity

The Exacta TL is the top of the range model. This ISOBUS 11783 compatible weighing spreader is equipped with an unique reference sensor. The EasySet dashboard on each spreading disc ensures simple and quick setting or adjustment. Different hopper capacities are available: two different basic hoppers of 1.500 and 1.875 litres and they can be increased with maximal 3 hopper extensions up to 3.450 and 3.900 litre capacity! Working widths from 12 up to 45m are possible. The Exacta TL can be operated with the Kverneland Group Focus II terminal, IsoMatch Tellus terminal or any ISOBUS compatible tractor terminal.
 The Advantages:
  • CentreFlow spreading system
  • Fully automatic weighing system with unique reference sensor
  • EasySet for quick and easy adjustment
  • Border spreading is easy!
  • ISOBUS 11783 compatible for easy plug and play
Exacta TL TL 1500 TL 2150 TL 2800 TL 3450
Hopper capacity (l) 1500 2150 2800 3450
Filling height (cm) 110 129 148 167
Width (cm) 275 275 275 275
Filling width (cm) 269 269 269 269
Empty weight (kg) 665 695 725 755
Spread width (m) 12 - 45 12 - 45 12 - 45 12 - 45
Output (kg/min) 10 - 320 10 - 320 10 - 320 10 - 320
Highlights

CentreFlow Spreading System

  • No impact, no fragmentation, no dust: Central release point, smooth acceleration and centrifugal force accelerates fertiliser up to disc speed before it reaches the vane.
  • Accurate spreading pattern: A double overlap spreading pattern gives unrivalled accuracy. The 8 vanes per discs are ensuring a continous flow of fertiliser to the field. This is important for high capacity spreading and forward speed.
  • Minimal wind influence, maximum tolerance: Flat discs and a horizontal flow of fertiliser give a symmetrical spreading pattern.
  • Consistent spreading pattern: Eight vanes per disc, eight sectors per revolution give an equal distribution. Double overlap spreading pattern.
  • Guaranteed accuracy on slopes: guaranteed accuracy on slopes. The fertiliser always contacts the vanes at the same point, also on slopes and travels the complete length of the vane.

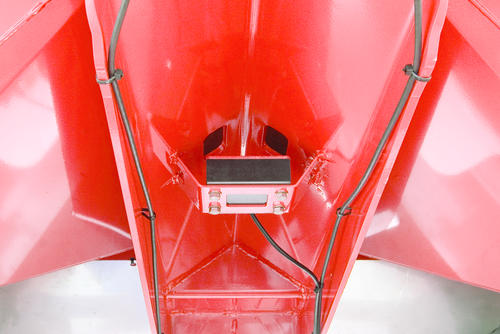

Weighing System


  • Continuous dynamic "online - calibration" with high frequency communication signal.
  • Kvernelands unique reference sensor technology: all negative influences are automatically corrected and eliminated, ensuring utmost spreading accuracy even on hill sides. The Kverneland reference sensor gives you absolute accuracy, because every kilo counts!
  • Load cells in combination with the unique reference sensor:
    - Auto calibrating and continuous weighing system
    - Automatic correction on slopes
    - Automatic correction of shocks, even on rough terrain
    - Automatic speed related dosing system
    - No calibration test needed
  • Highest accuracy in all conditions: even spreading quality guaranteed! Save costs and increase quality!

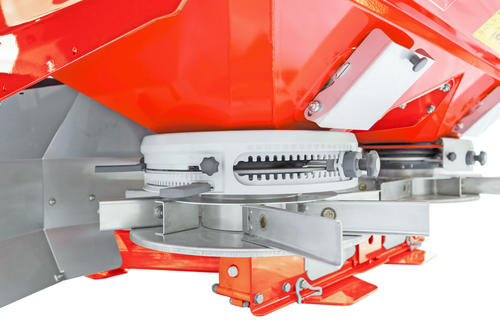

EasySet: Easy Setting and Adjustment

KV_exacta_210
  • The compact EasySet 'dashboard' gives you considerably simplified accurate setting and adjustment of applicaton rates. Two hydraulically operated metering plates, each with three discharge openings ensure an equal fertiliser flow from the hopper to the spreading discs.
  • The development department of Kvernelands spreader R&D team has its own spreader competence centre in order to allow continuous testing throughout the year. All test are carried out according to the strictest international standards and quality requirements.
  • The key to accurate spreading is matching fertiliser quality and litre weight with the spreading charts as close as possible. The CentreFlow 6 step checklist helps you to ensure consistent accuracy in all field conditions
    1. Select fertiliser type
    2. Determine granule size and distribution
    3. Determine litre weight
    4. Select spreading table
    5. Select field settings
    6. Adjust EasySet system

Border Spreading

KV_exacta_206
  • Kverneland offers the ExactLine system or manual/hydraulic border spreading plate for border spreading. The ExactLine can be accurately set for all types of fertiliser and for all working widths. Operation is easy, no need to leave the tractor seat. For the Exacta CL is also a tramline cylinder optional available.
  • With one-side boundary spreading the tractor is driven approximately 2 metres from the field border.
  • With boundary track spreading the tractor is driving in the first tramline and is spreading to the border. The distance to the border is the half of the working width.
  • The Border Spreading Indicator (BSI), indicates which border spreading device is active.

ISOBUS Control

  • ISOBUS intelligence: Standard on Our Weighing Spreaders
    You are ensured of the ISOBUS compatibiliy from tractor to the spreader and spreader to tractor, meaning that all data collection from your spreader is centralised and can be easily transferred to your (tractor)terminal in the tractor cabin. Easy plug and play!
  • Focus II:
    Focus II is our universal Kverneland Group ISOBUS terminal and fits to all our spreaders, seeders, balers etc. Focus II has been designed for easy operation with the screen showing all spreading information at a glance, with easy access via 'softkeys' to independent left/right shut off and over/under application functions. Spread rate, forward speed, hopper contents, area covered and area/distance left to spread are all clearly displayed.

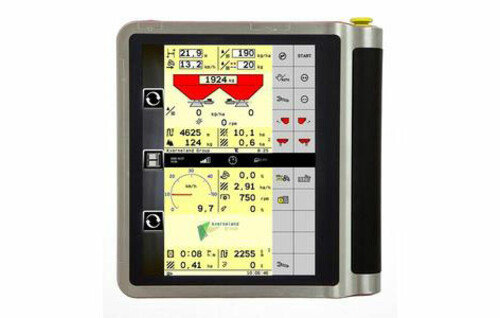

  • IsoMatch Tellus terminal:
    The IsoMatch Tellus is the first Universal Terminal with the capability to view and operate 2 different ISOBUS interfaces at once. This allows for example direct control of 2 implements at the same time for continuous observation of a camera view, without switching screen.
    • Large 12,1" colour touch-screen
    • Intuitive operation
    • Basic DOC registration program to save operational information directly to USB
    • Four USB slots for easy data exchange, wireless USB stick or USB to serial cable for additional sensors
    • Build in PDF reader
    • RS232 connection for GPS receivers or sensors
    • Internet connection via a wireless USB stick or router
    • Integrated web browser
